- Size: 0.001
- Place of Origin: shandong
- Brand Name: Deep Groove ball bearing
- Model Number: 24122CAW33
- Weight: 6.630 kg

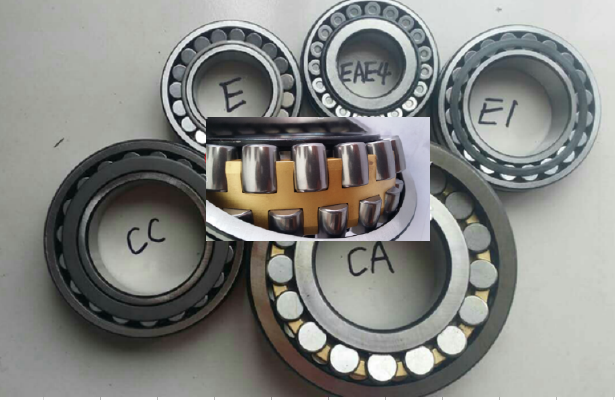

Spherical roller bearings are double rows, self-aligning units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.
Spherical roller bearings can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity and, since they have the maximum possible number of large and particularly long barrel rollers, are also suitable for the heaviest loads.

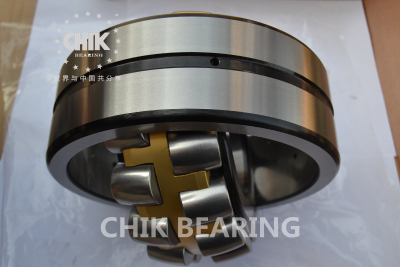

The bearings with a suffix "W33" have a circumferential groove and three lubrication holes in the outer ring for lubrication.
| Part No. | d - Bore (mm) | D - Outer Diameter(mm) | B - Outer Ring Width (mm) | Part No. | d - Bore (mm) | D - Outer Diameter(mm) | B - Outer Ring Width (mm) |
| 22205 CA/W33 | 25 | 52 | 18 | 22210E1,E1-K | 50 | 90 | 23 |
| 22205CC/W33 | 25 | 52 | 18 | 22210CCK/W33 | 50 | 90 | 23 |
| 22205MB/W33 | 25 | 52 | 18 | 22210CAK/W33 | 50 | 90 | 23 |
| 22205E | 25 | 52 | 18 | 22210EKJA/VA | 50 | 90 | 23 |
| 22205EK | 25 | 52 | 18 | 22210 EK+H | 50 | 90 | 23 |
| 22205E1,E1-K | 25 | 52 | 18 | 22211 CA/W33 | 55 | 100 | 25 |
| 22205CCK/W33 | 25 | 52 | 18 | 22211CC/W33 | 55 | 100 | 25 |
| 22205CAK/W33 | 25 | 52 | 18 | 22211MB/W33 | 55 | 100 | 25 |
| 22205EKJA/VA | 25 | 52 | 18 | 22211E | 55 | 100 | 25 |
| 22205 EK+H | 25 | 52 | 18 | 22211EK | 55 | 100 | 25 |
| 22206 CA/W33 | 30 | 62 | 20 | 22211E1,E1-K | 55 | 100 | 25 |
| 22206CC/W33 | 30 | 62 | 20 | 22211CCK/W33 | 55 | 100 | 25 |
| 22206MB/W33 | 30 | 62 | 20 | 22211CAK/W33 | 55 | 100 | 25 |
| 22206E | 30 | 62 | 20 | 22211EKJA/VA | 55 | 100 | 25 |
| 22206EK | 30 | 62 | 20 | 22211 EK+H | 55 | 100 | 25 |
| 22206E1,E1-K | 30 | 62 | 20 | 22212 CA/W33 | 60 | 110 | 28 |
| 22206CCK/W33 | 30 | 62 | 20 | 22212CC/W33 | 60 | 110 | 28 |
All bearings types & Models
Spherical Roller Bearing---- 222,223,230,231,232 series;
Cylindrical Roller Bearing ----N2, NF2,22,3,23,4,NU10,2,22,3,23,4,NJ10,2,22,3,23,4,NUP2,4,NN series;
Contact us if you are interested in this.
Shandong Chik Bearing Co.,Ltd
Email: cindy@chikbearing.com
Mob/whatsapp:0086 158 0668 3165
