- Size: 0.001
- Place of Origin: shandong
- Brand Name: Tapered Roller Bearings
- Model Number: 32013
- Weight: 0.122 kg
CHIK specializes in producing single row metric series tapered roller bearings. Designations are used according to widely accepted standards and relates to ISO 355 rules for contact angles and boundary dimensions. Unless otherwise specified, bearings dimensional accuracy is normal, however, improved running accuracy is available

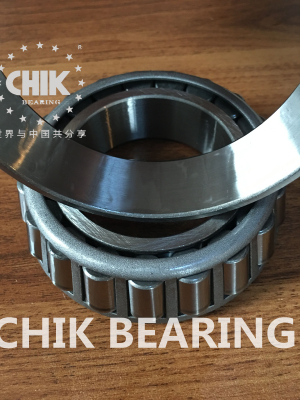

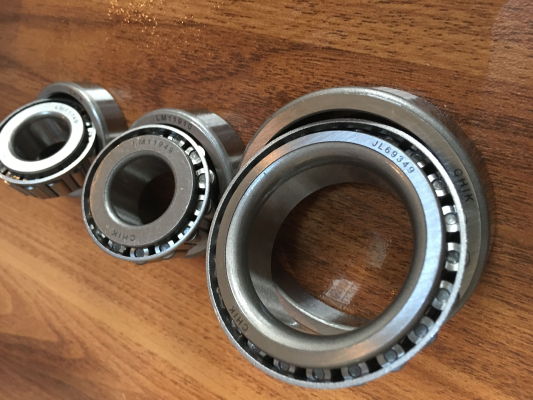

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, Chik offers a variety of configurations to our tapered roller bearings such as single-row, double-row and four-row.
Parameters
| Product | TIMKEN Inch size taper roller bearing LM48548 |
| Brand | CHIK |
| Material | Chrome steel, GCr15, Bearing Steel |
| Decription | High precision and low noise |
| Bore Size | mm |
| Outside Diameter | mm |
| Precision Grade | P0, P6, P5 ABEC1,ABEC3,ABEC5 |
| Clearance | C1,C2,C3, |
| Noise | Z1, Z2,Z3 |
| Vibration | V1,V2,v3 |
| Service | OEM acceptable |
| Seals Type | Open |
| Number of Row | Single |
| Payment Terms | T/T,Western Union,Paypal |
| Port | Qingdao, Ningbo, Guangzhou,yiwu |
| Shippment | by sea or by air |
| Place of Origin | Jinan,Shandong,China |
| Samples | Free sample available |
| Contact Info | Cindy Wang Email:cindy@chikbearing.com |
| Skype:chikbearing002 | |
| Tel: 0086-531-82964086 Fax: 008653182964081 | |
| Mobile/Whats App: 0086-15806682971 |
| ISO | Dimensions (mm) | Basic Load Rating (N) | Limitting speed ( r/min ) | Weight | ||||||
| Lubrication | ||||||||||
| d | D | B | T | C | Dyn. C | Stat. C0 | Grease | Oil | ||
| 30202 | 15 | 35 | 11 | 11 | 10 | 12500 | 11800 | 15000 | 20000 | 0.057 |
| 30203 | 17 | 40 | 12 | 13 | 11 | 19000 | 18600 | 9000 | 13000 | 0.075 |
| 30204 | 20 | 47 | 14 | 15 | 12 | 27500 | 28000 | 8000 | 11000 | 0.12 |
| 30205 | 25 | 52 | 15 | 16 | 13 | 30800 | 33500 | 7500 | 10000 | 0.15 |
| 30206 | 30 | 62 | 16 | 17 | 14 | 40200 | 44000 | 6300 | 8500 | 0.23 |
| 30207 | 35 | 72 | 17 | 18 | 15 | 51200 | 56000 | 5300 | 7000 | 0.32 |
| 30208 | 40 | 80 | 18 | 19 | 16 | 61600 | 68000 | 4800 | 6300 | 0.42 |
| 30209 | 45 | 85 | 19 | 20 | 16 | 66000 | 76500 | 4500 | 6000 | 0.48 |
| 30210 | 50 | 90 | 20 | 21 | 17 | 76500 | 91500 | 4300 | 5600 | 0.54 |
| 30211 | 55 | 100 | 21 | 22 | 18 | 89700 | 106000 | 3800 | 5000 | 0.7 |
| 30212 | 60 | 110 | 22 | 23 | 19 | 99000 | 114000 | 3400 | 4500 | 0.88 |
| 30213 | 65 | 120 | 23 | 24 | 20 | 114000 | 134000 | 3000 | 4000 | 1.15 |
| 30214 | 70 | 125 | 24 | 26 | 21 | 125000 | 156000 | 3000 | 4000 | 1.25 |
| 30215 | 75 | 130 | 25 | 27 | 22 | 140000 | 176000 | 2800 | 3800 | 1.4 |
| 30216 | 80 | 140 | 26 | 28 | 22 | 151000 | 183000 | 2400 | 3400 | 1.6 |
| 30217 | 85 | 150 | 28 | 30 | 24 | 176000 | 220000 | 2200 | 3200 | 2.05 |
| 30218 | 90 | 160 | 30 | 32 | 26 | 194000 | 245000 | 2000 | 3000 | 2.55 |
All bearings types & Models
Tapered Roller Bearing----- 302,303,313,322,323,329,320,330,332 series, both Metric and Inch size available;
Contact us if you are interested in this.
