- Size: 0.001
- Place of Origin: shandong
- Brand Name: CHIK
- Model Number: roller shutter door Bearing
- Weight: 0.117 kg

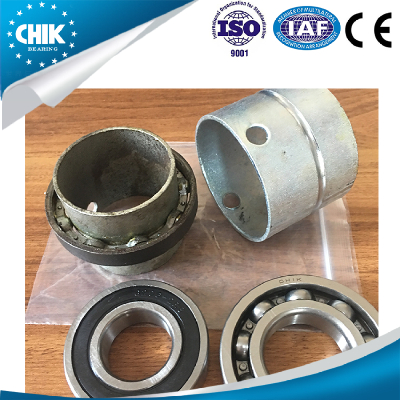

Deep groove ball bearings are particularly versatile. They are simple in design, non-separable, suitable for high and very high speeds and are robust in operation, requiring little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from CHIK in many designs, variants and sizes.
Bearing internal clearance is defined as the total distance through which one bearing ring can be moved relative to the other in the radial direction (radial internal clearance). CHIK bearings single row deep groove ball bearings are manufactured with normal radial internal clearance as standard (CN). Most of the bearings are also available with C3 radial internal clearance. Depending on working conditions you can choose bearing with different internal clearances, the values of radial internal clearance are in accordance to ISO 5753:1 and are valid for unmounted bearings under zero measuring load.
Series | Bearing NO. | Structure |
6000 | 604-6044 | Open Z 2Z RS 2RS |
6200 | 6201-6240 | Open Z 2Z RS 2RS |
6300 | 6304-6340 | Open Z 2Z RS 2RS |
6400 | 6405-6418 | Open Z 2Z RS 2RS |
Series | Bearing NO. | Structure |
6800 | 6800-6834 | Open Z 2Z RS 2RS |
6900 | 6900-6934 | Open Z 2Z RS 2RS |
16000 | 16001-16040 | Open Z 2Z RS 2RS |
62200 | 62200-62216 | Open Z 2Z RS 2RS |
Part of parameters
ISO | Dimensions (mm) | Basic Load Rating (N) | Limitting speed ( r/min ) | Weight | ||||
Lubrication | ||||||||
d | D | B | Dyn. C | Stat. C0 | Grease | Oil | ||
6205 | 25 | 52 | 15 | 14000 | 7800 | 13000 | 15000 | 0.133 |
6205 ZZ | 25 | 52 | 15 | 14000 | 7800 | 13000 | 15000 | 0.133 |
6205 2RS | 25 | 52 | 15 | 14000 | 7800 | 8500 | - | 0.133 |
6206 | 30 | 62 | 16 | 19500 | 11200 | 11000 | 13000 | 0.2 |
6206 ZZ | 30 | 62 | 16 | 19500 | 11200 | 11000 | 13000 | 0.2 |
6206 2RS | 30 | 62 | 16 | 19500 | 11200 | 7500 | - | 0.2 |
6207 | 35 | 72 | 17 | 25500 | 15300 | 9800 | 11000 | 0.299 |
6207 ZZ | 35 | 72 | 17 | 25500 | 15300 | 9800 | 11000 | 0.299 |
6207 2RS | 35 | 72 | 17 | 25500 | 15300 | 6300 | - | 0.299 |
6208 | 40 | 80 | 18 | 30700 | 19000 | 8700 | 10000 | 0.379 |
6208 ZZ | 40 | 80 | 18 | 30700 | 19000 | 8700 | 10000 | 0.379 |
6208 2RS | 40 | 80 | 18 | 30700 | 19000 | 5600 | - | 0.379 |
6209 | 45 | 85 | 19 | 33200 | 21600 | 7800 | 9200 | 0.43 |
6209 ZZ | 45 | 85 | 19 | 33200 | 21600 | 7800 | 9200 | 0.43 |
6209 2RS | 45 | 85 | 19 | 33200 | 21600 | 5000 | - | 0.43 |
6210 | 50 | 90 | 20 | 35100 | 23200 | 7100 | 8300 | 0.475 |
6210 ZZ | 50 | 90 | 20 | 35100 | 23200 | 7100 | 8300 | 0.475 |
6210 2RS | 50 | 90 | 20 | 35100 | 23200 | 4800 | - | 0.475 |
All bearings types & Models
Contact us if you are interested in this.
